BS4 12-Head RGB Laser Effect Bar – Motorized Y-Axis
$3,379.20
12 Motorized RGB Laser Heads for Dynamic Stage Effects
The StarshineLights BS4 is a 12-head RGB laser effect bar designed for indoor stage productions, nightclubs, DJ performances, and live entertainment. Featuring twelve full-color RGB laser heads with programmable Y-axis movement, the BS4 creates coordinated laser beam effects, color sequences, and dynamic lighting patterns. Its five DMX512 profiles, ranging from 26CH to 240CH, provide different levels of programming control, while built-in automatic, sound-active, and master/slave modes support flexible standalone operation. With a 210W rated electrical input, intelligent fan cooling, and a compact bar-style design, the BS4 integrates twelve moving laser sources into a single professional lighting fixture.
12 Full-Color RGB Laser Heads
12 RGB Laser Sources: Twelve full-color laser heads generate red, green, blue, and mixed-color laser effects.
Multi-Head Laser Output: Create coordinated laser arrays and layered beam sequences from a single fixture.
RGB Color Mixing: Combine red, green, and blue laser output for a variety of stage lighting colors.
Built-In Laser Patterns: Select programmed laser patterns and color macros for different visual effects.
Laser-Only Lighting Effects: Focused entirely on RGB laser performance without auxiliary LED lighting effects.
Motorized Y-Axis Laser Movement
12 Motorized Laser Heads: Programmable Y-axis movement creates coordinated moving laser effects.
Individual Head Positioning: Supported DMX profiles provide separate positioning channels for the twelve heads.
Coarse and Fine Position Control: Adjust head positioning through the manufacturer's documented movement channels.
Adjustable Movement Speed: Configure laser movement speed and built-in movement modes.
Y-Axis Direction Settings: Movement inversion and head-order controls support different choreography arrangements.
RGB Laser Effects and Dynamic Programming
RGB Color Macros: Select laser color combinations through built-in effect controls.
Laser Pattern Selection: Combine built-in patterns with movement to develop varied stage effects.
Adjustable Laser Dimming: Control laser output levels through the documented dimming functions.
Laser Strobe Effects: Add programmable flashes with a manufacturer-stated 1–30Hz strobe range.
Synchronized Laser Sequences: Coordinate movement, color, patterns, and strobe effects for indoor performances.
Five DMX512 Profiles and Standalone Control
Five DMX Profiles: Select 26CH, 48CH, 96CH, 228CH, or 240CH based on programming needs.
DMX512 Programming: Integrate laser movement, RGB colors, dimming, and effects into compatible lighting-console workflows.
RDM Functionality: Manufacturer-listed RDM support provides an additional DMX network-management capability.
Automatic and Sound-Active Modes: Play built-in laser effects without a dedicated DMX controller.
Master/Slave Synchronization: Connect multiple compatible BS4 fixtures for coordinated standalone playback.
Specs
Brand
StarshineLights
Product Model
BS4
Product Type
12-Head RGB Laser Effect Bar
Fixture Style
Motorized Multi-Head Laser Bar
Laser Head Quantity
12
Color System
RGB Full Color
Rated Electrical Power
210W
IP Rating
IP20
Intended Environment
Dry Indoor Use
Applications
Indoor Stages, Nightclubs, DJ Productions, Live Entertainment
Operating Temperature
-30°C to +50°C (Manufacturer-Stated)
Laser Sources
12 × RGB Laser Heads
Laser Colors
Red / Green / Blue
Laser Effects
Multi-Head Beam Effects, Color Macros, Built-In Patterns
Laser Movement
Motorized Y-Axis
Laser Dimming
Adjustable Output
Strobe Frequency
1–30Hz (Manufacturer-Stated)
Laser Optical Power
Not Specified
Laser Wavelengths
Not Specified
Laser Classification
Not Specified
Custom Graphics / ILDA
Not Confirmed
Moving Laser Heads
12
Movement Axis
Y-Axis
Individual Positioning
Listed in Supported DMX Profiles
Position Adjustment
Coarse / Fine Channels
Movement Speed
Adjustable
Movement Modes
Programmable
Y-Axis Inversion
Supported
Head-Order Selection
Forward / Reverse
Y-Axis Reset
Supported
Maximum Movement Angle
Not Specified
Control Protocol
DMX512
Additional Protocol
RDM
DMX Profiles
26CH / 48CH / 96CH / 228CH / 240CH
Default DMX Profile
26CH
Automatic Mode
Supported
Sound-Active Mode
Supported
Master/Slave Mode
Supported
Sound Sensitivity
00–99
RGB Color Control
Supported
Laser Pattern Selection
Supported
Movement Control
Supported
Laser Dimming
Supported
Laser Strobe
Supported
Function / Reset Commands
Supported
Input Voltage
AC 100–240V
Frequency
50/60Hz
Rated Power
210W
Cooling System
Intelligent Fan-Assisted Cooling
Housing Finish
Black

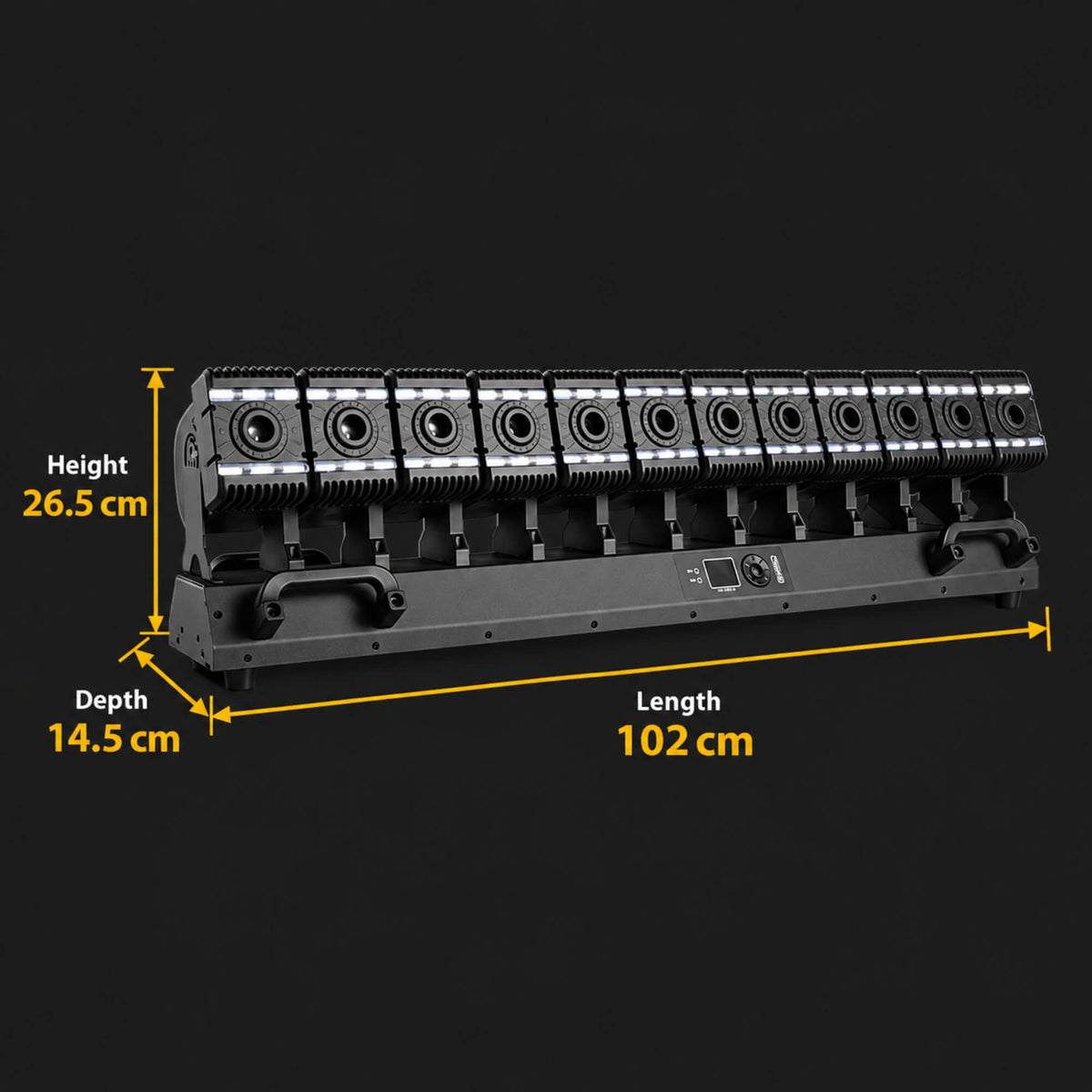

Fixture Dimensions
102 × 14.5 × 26.5 cm
DMX Connections
DMX IN / OUT
Power Connections
Power IN / OUT
Display Controls
MENU / UP / DOWN / ENTER
Display Languages
English / Chinese
IP Rating
IP20
DMX Verification Note
96CH, 228CH and 240CH assignments require firmware verification.
Configuration
12 RGB Laser Heads, Laser-Only Effects
FAQ
Q: What is the StarshineLights BS4, and who is it designed for?
A: The StarshineLights BS4 is a 12-head RGB laser effect bar featuring twelve motorized full-color laser heads, programmable Y-axis movement, and DMX512 control. It is designed for indoor stage productions, DJ performances, nightclubs, and entertainment lighting installations. The BS4 is particularly relevant to lighting designers who want coordinated multi-head laser effects from a single fixture rather than a conventional LED wash light or single-head laser projector.
Q: Are all twelve heads on the BS4 full-color RGB lasers?
A: Yes. All twelve BS4 heads are RGB laser sources that produce red, green, blue, and mixed-color laser effects. The fixture combines these laser heads with motorized Y-axis movement, built-in patterns, and color controls to create synchronized laser sequences. The BS4 is a laser-only effect bar. It does not include separate LED wash lighting or auxiliary white-light effects.
Q: Is the BS4 a good choice for indoor DJ and nightclub laser lighting?
A: Yes. The BS4 is designed for controlled indoor DJ shows, nightclubs, and live stage productions. Its twelve RGB laser heads, programmable movement, built-in patterns, and sound-active mode offer different ways to create music-driven effects. For buyers comparing DJ laser lights or nightclub laser lights, the BS4 provides a multi-head lighting bar with both standalone playback and DMX512 programming options. Appropriate laser safety procedures are required for every installation.
Q: What laser effects can the BS4 create?
A: The BS4 creates multi-head RGB laser beam effects using twelve motorized laser sources. Available functions include red, green, and blue color selection, mixed-color effects, built-in laser patterns, Y-axis movement, dimming, and strobe control. These functions allow lighting designers to combine moving beam arrays with synchronized color changes and programmed laser sequences. Custom graphics and logo projection are not established by the available documentation.
Q: Do I need a DMX controller or computer to operate the BS4?
A: No. The BS4 supports automatic and sound-active modes, allowing built-in laser programs to run without an external DMX controller or computer. Sound sensitivity can be adjusted through the fixture's menu. A DMX512 controller is recommended when you need repeatable show cues, individual laser-head positioning, or more detailed color and movement programming. Computer-based laser software compatibility is not confirmed.
Q: Can all twelve BS4 laser heads move independently?
A: The BS4 supports motorized Y-axis movement across its twelve RGB laser heads. The manufacturer's DMX reference describes separate coarse and fine position channels for individual heads in supported profiles, allowing more detailed movement programming than shared movement alone. The documented movement is Y-axis only. Conventional two-axis pan-and-tilt control and the maximum movement angle are not specified. Confirm the channel mapping of your fixture before programming individual movements.
Q: Which DMX512 channel profiles does the BS4 support?
A: The manufacturer lists five DMX512 profiles: 26CH, 48CH, 96CH, 228CH, and 240CH. The 26CH profile provides a smaller channel footprint for shared effects, while the 48CH reference describes individual Y-axis positioning. The 96CH reference includes additional per-head RGB laser controls. For 228CH and 240CH programming, use the channel map that matches the delivered fixture firmware. Detailed assignments for the laser-only configuration have not been fully verified.
Q: Can I adjust the RGB laser colors and brightness?
A: Yes. The BS4 supports RGB color selection, color macros, and adjustable laser dimming. Red, green, and blue laser output can be combined to produce different colors, while dimming controls allow the laser output level to be adjusted. These functions can be used alongside movement, patterns, and strobe effects. The manufacturer specifies 0–100% linear dimming, but that should not be interpreted as a confirmed 32-bit DMX channel resolution.
Q: Can I connect multiple BS4 laser bars for a synchronized show?
A: Yes. Compatible BS4 fixtures can be linked through their DMX IN/OUT connections. With a DMX512 controller, each fixture can be assigned an appropriate address and channel profile for coordinated or separately programmed effects. The BS4 also supports master/slave operation, allowing compatible fixtures to follow a master unit's built-in automatic or sound-active program. Use proper DMX cabling and follow the manufacturer's connection instructions.
Q: Can the BS4 project custom logos or work with ILDA software or a phone app?
A: The BS4 documentation confirms built-in laser patterns and RGB effects, but it does not establish support for custom logos, uploaded text, or user-created animations. ILDA input, compatibility with specific laser-control software, and smartphone app control are also not confirmed. If your project requires custom graphics, ILDA programming, or wireless app control, verify those capabilities before purchasing. The BS4's documented control options include DMX512, automatic, sound-active, and master/slave modes.
Q: Can I use the BS4 laser light bar outdoors?
A: No. The BS4 has an IP20-rated enclosure and is intended for dry indoor environments. It should not be exposed to rain, splashing water, excessive condensation, or weather-exposed installations. If your event requires outdoor laser lighting, select a fixture with a verified environmental protection rating suitable for the location. The BS4 should not be treated as a waterproof or weather-resistant laser bar.
Q: What are the BS4's dimensions and electrical power requirements?
A: The BS4 measures 102 × 14.5 × 26.5 cm and operates on AC 100–240V, 50/60Hz. Its rated electrical power is 210W. This is the fixture's electrical rating, not its total laser optical output power. The bar-style housing integrates twelve motorized RGB laser heads into one fixture. Net weight and shipping dimensions should be confirmed before planning transportation or overhead installation.
Q: Can the BS4 be mounted on a stage truss?
A: The BS4 can be considered for overhead stage installation when suitable mounting points and properly rated rigging hardware are available. Installation should be completed by qualified personnel using approved clamps, a correctly rated supporting structure, and an independent safety cable. Allow sufficient clearance for laser-head movement and ventilation. Confirm the actual fixture weight and mounting arrangement before installation, since those details are not fully established in the available specifications.
Q: Can the BS4 laser beams be directed toward an audience?
A: Audience scanning must not be assumed safe or permitted. The available BS4 documentation does not establish its laser classification, optical output power, or safety compliance for audience-directed projection. Laser beams must be kept within controlled projection areas and away from people, vehicles, aircraft, and other uncontrolled locations. Operators must follow the fixture's safety labels, applicable laser-show regulations, and appropriate professional safety procedures.
